• ssm框架搭建

ssm框架搭建

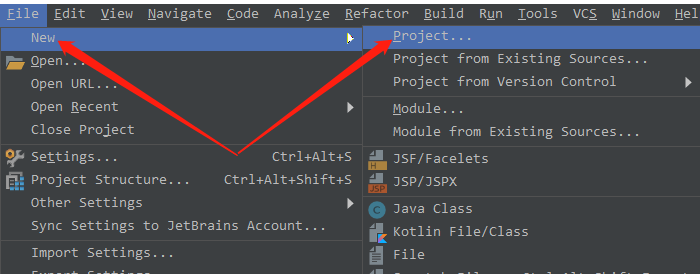

1、新建一个项目，如下图所示

ssm框架搭建步骤

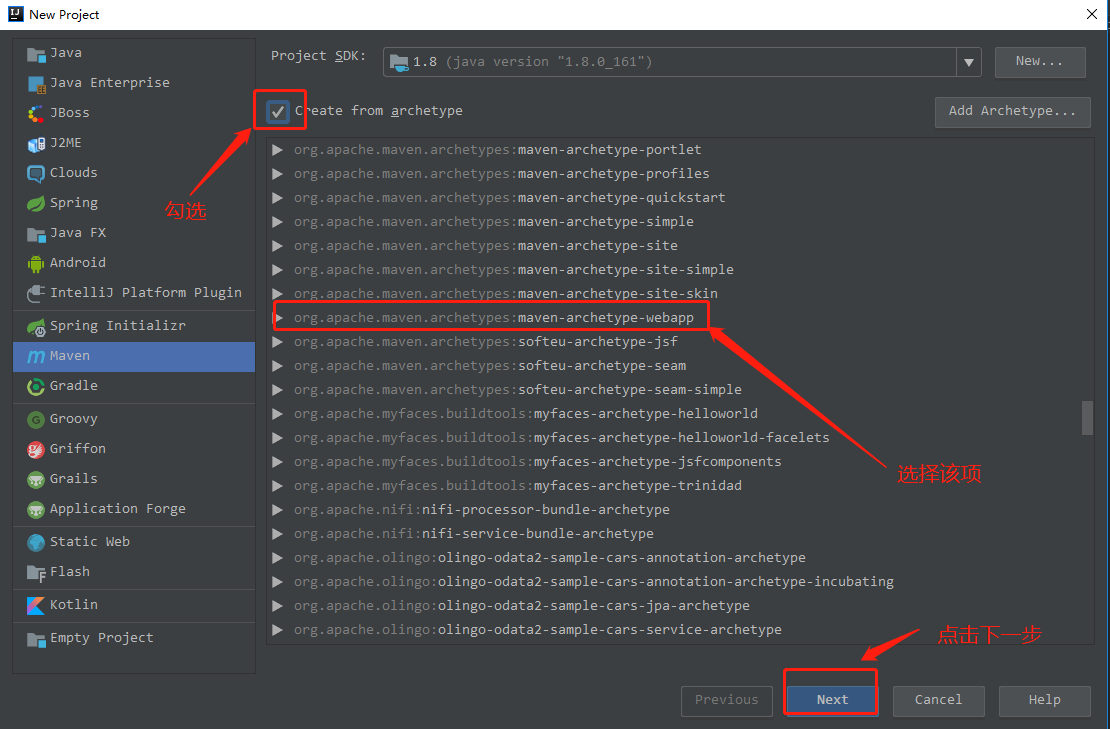

2、选择maven-archetype-webapp

ssm框架搭建步骤

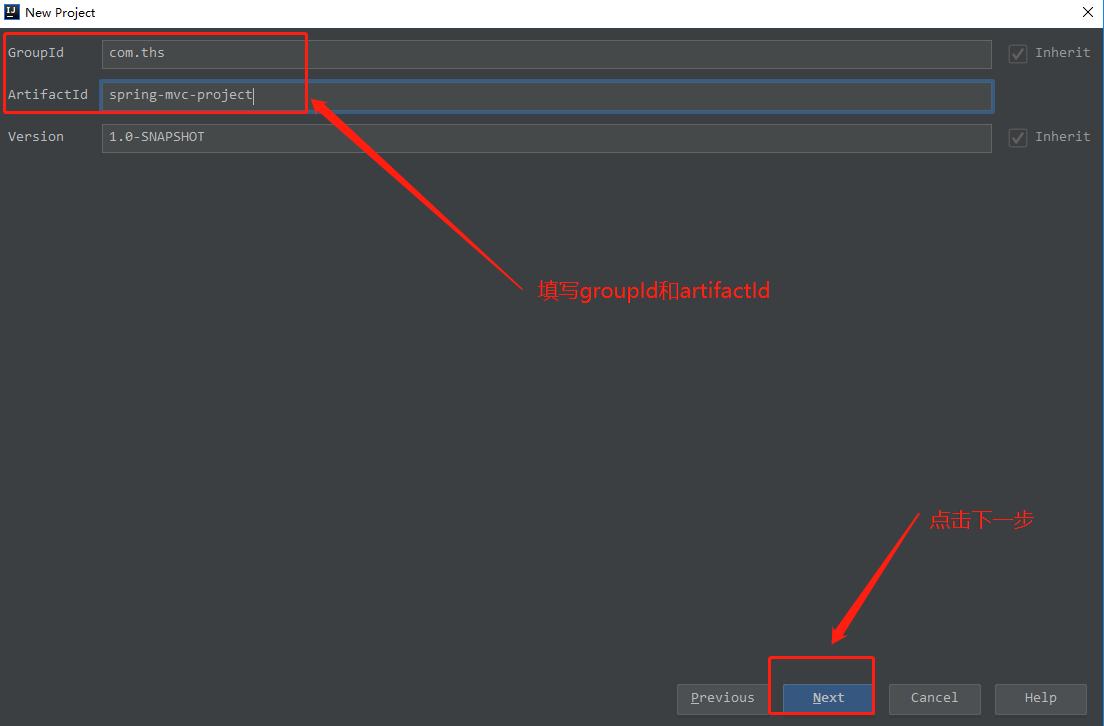

3、填写GroupId和ArtifactId

ssm框架搭建步骤

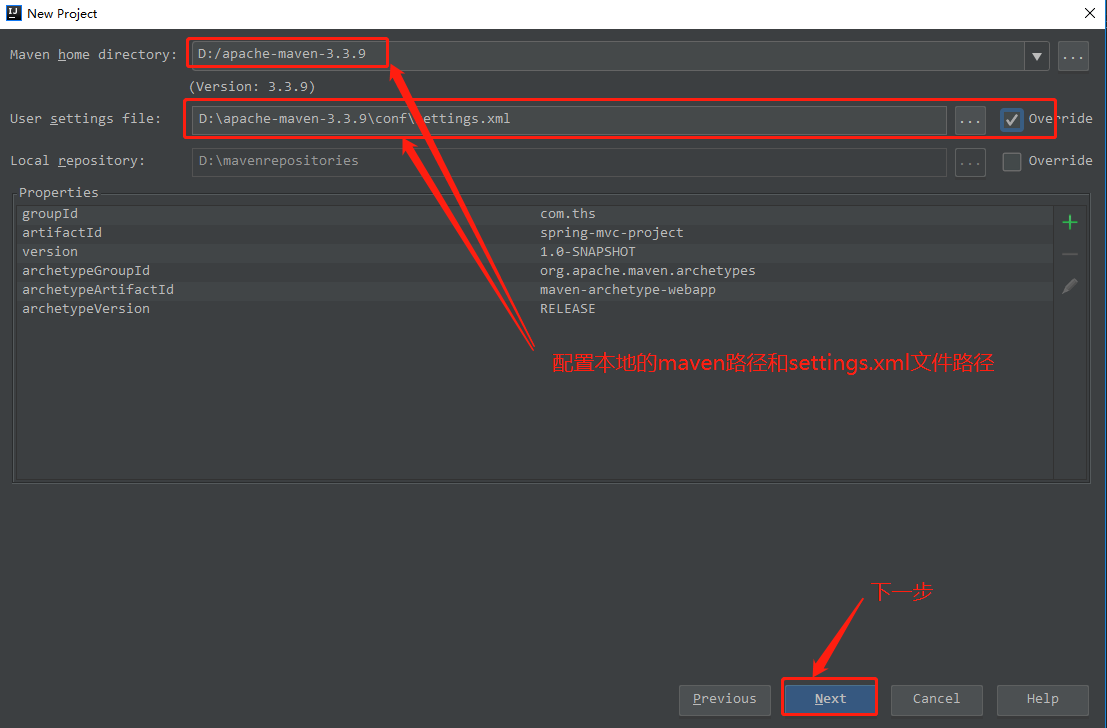

4、配置maven仓库地址

ssm框架搭建步骤

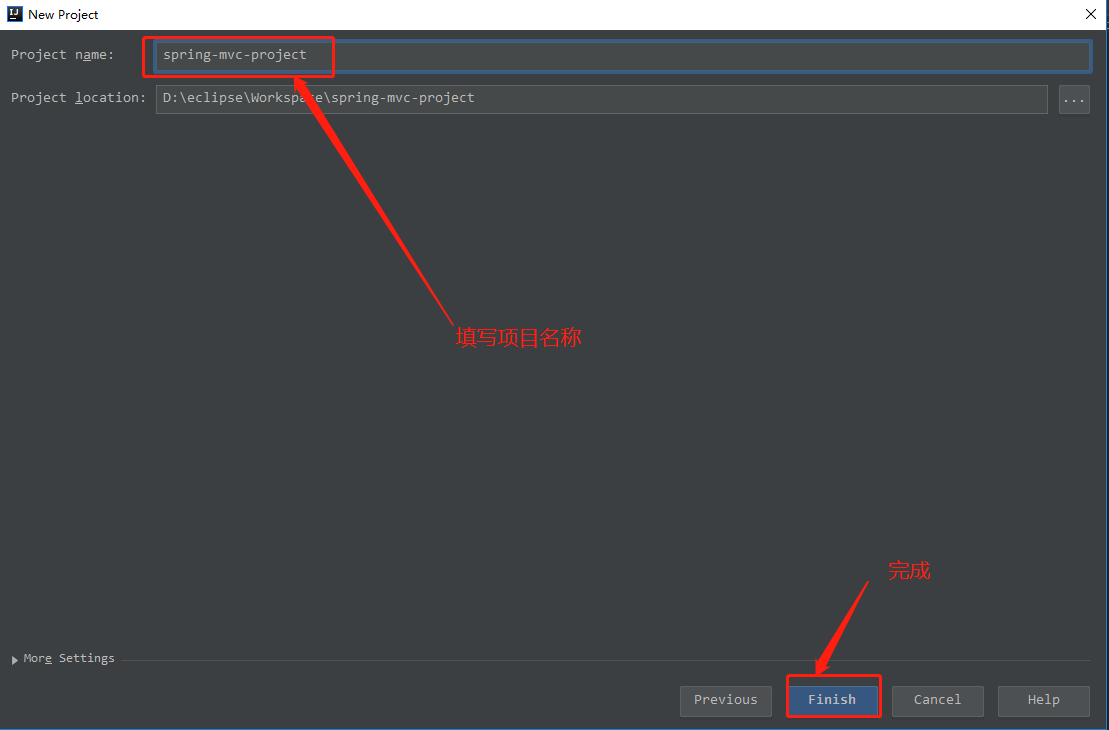

5、填写项目名称并点击完成

ssm框架搭建步骤

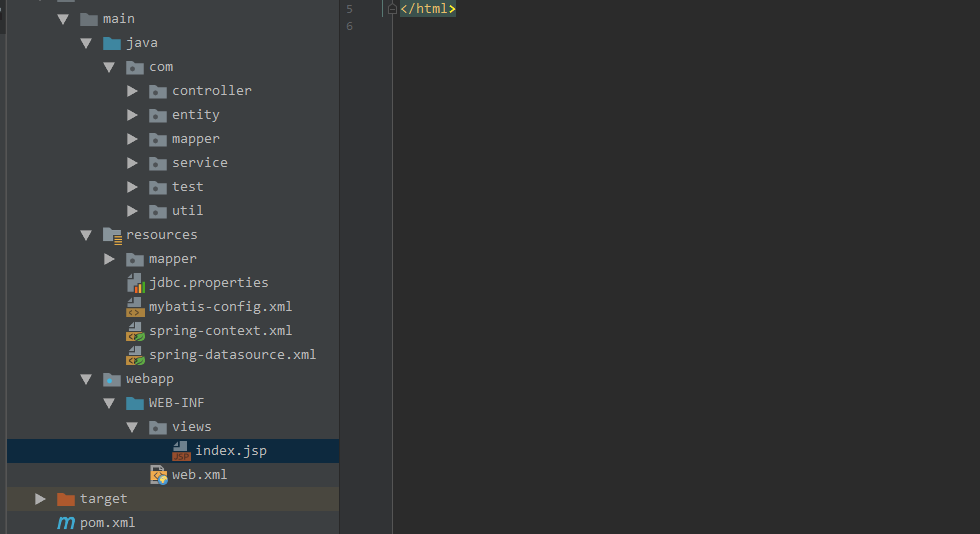

6、新建java、resource等资源包，项目结构如下图所示：

ssm框架搭建步骤

7、修改pom.xml文件添加依赖

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
        <spring.version>4.3.9.RELEASE</spring.version>
        <druid.version>1.0.18</druid.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.39</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>${druid.version}</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.1</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.0</version>
        </dependency>
        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>oracle-jdbc-driver</artifactId>
            <version>11.2.0</version>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

8、resources添加jdbc.properties配置文件

#oracle数据库
jdbc.driver=oracle.jdbc.driver.OracleDriver
jdbc.url=jdbc:oracle:thin:@ip:port:orcl
jdbc.username=username
jdbc.password=password
#pool settings
jdbc.pool.init=100
jdbc.pool.minIdle=3000
jdbc.pool.maxActive=10000
jdbc.testSql=SELECT 'x' FROM DUAL

9、修改web.xml配置文件

<web-app version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">
  <display-name>Archetype Created Web Application</display-name>
  <servlet>
    <servlet-name>dispatcher</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:spring-*.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>dispatcher</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
  <welcome-file-list>
    <welcome-file>index.jsp</welcome-file>
  </welcome-file-list>
</web-app>

10、resources添加spring-context.xml配置文件

<?xml version="1.0" encoding="utf-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <context:component-scan base-package="com"/>
    <context:property-placeholder ignore-unresolvable="true" location="classpath:jdbc.properties"/>
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

11、resources添加mybatis-config.xml配置文件

<?xml version="1.0" encoding="utf-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration >
    <!-- 全局参数 -->
    <settings>
        <!-- 使全局的映射器启用或禁用缓存。 -->
        <setting name="cacheEnabled" value="true"/>

        <!-- 全局启用或禁用延迟加载。当禁用时，所有关联对象都会即时加载。 -->
        <setting name="lazyLoadingEnabled" value="true"/>

        <!-- 当启用时，有延迟加载属性的对象在被调用时将会完全加载任意属性。否则，每种属性将会按需要加载。 -->
        <setting name="aggressiveLazyLoading" value="true"/>

        <!-- 是否允许单条sql 返回多个数据集  (取决于驱动的兼容性) default:true -->
        <setting name="multipleResultSetsEnabled" value="true"/>

        <!-- 是否可以使用列的别名 (取决于驱动的兼容性) default:true -->
        <setting name="useColumnLabel" value="true"/>

        <!-- 允许JDBC 生成主键。需要驱动器支持。如果设为了true，这个设置将强制使用被生成的主键，有一些驱动器不兼容不过仍然可以执行。  default:false  -->
        <setting name="useGeneratedKeys" value="false"/>

        <!-- 指定 MyBatis 如何自动映射 数据基表的列 NONE：不隐射　PARTIAL:部分  FULL:全部  -->
        <setting name="autoMappingBehavior" value="PARTIAL"/>

        <!-- 这是默认的执行类型  （SIMPLE: 简单； REUSE: 执行器可能重复使用prepared statements语句；BATCH: 执行器可以重复执行语句和批量更新）  -->
        <setting name="defaultExecutorType" value="SIMPLE"/>

        <!-- 使用驼峰命名法转换字段。 -->
        <setting name="mapUnderscoreToCamelCase" value="true"/>

        <!-- 设置本地缓存范围 session:就会有数据的共享  statement:语句范围 (这样就不会有数据的共享 ) defalut:session -->
        <setting name="localCacheScope" value="SESSION"/>

        <!-- 设置但JDBC类型为空时,某些驱动程序 要指定值,default:OTHER，插入空值时不需要指定类型 -->
        <setting name="jdbcTypeForNull" value="NULL"/>

    </settings>
</configuration>

12、resources添加spring-datasource.xml配置文件

<?xml version="1.0" encoding="utf-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd ">


    <!-- 定义事务 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
    <!-- 数据源配置, 使用 BoneCP 数据库连接池 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <!-- 数据源驱动类可不写，Druid默认会自动根据URL识别DriverClass -->
        <property name="driverClassName" value="${jdbc.driver}" />

        <!-- 基本属性 url、user、password -->
        <property name="url" value="${jdbc.url}" />
        <property name="username" value="${jdbc.username}" />
        <property name="password" value="${jdbc.password}" />

        <!-- 配置初始化大小、最小、最大 -->
        <property name="initialSize" value="${jdbc.pool.init}" />
        <property name="minIdle" value="${jdbc.pool.minIdle}" />
        <property name="maxActive" value="${jdbc.pool.maxActive}" />

        <!-- 配置获取连接等待超时的时间 -->
        <property name="maxWait" value="60000" />

        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000" />

        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="300000" />

        <property name="validationQuery" value="${jdbc.testSql}" />
        <property name="testWhileIdle" value="true" />
        <property name="testOnBorrow" value="false" />
        <property name="testOnReturn" value="false" />

        <!-- 打开PSCache，并且指定每个连接上PSCache的大小（Oracle使用） -->
        <property name="poolPreparedStatements" value="true" />
        <property name="maxPoolPreparedStatementPerConnectionSize" value="20" />

        <!-- 配置监控统计拦截的filters -->
        <property name="filters" value="stat" />
    </bean>

    <!-- MyBatis begin -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="typeAliasesPackage" value="com.entity"/>
        <property name="mapperLocations" value="classpath:/mapper/*.xml"/>
        <property name="configLocation" value="classpath:/mybatis-config.xml"></property>
    </bean>

    <!-- 扫描basePackage下所有以@MyBatisDao注解的接口 -->
    <bean id="mapperScannerConfigurer" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
        <property name="basePackage" value="com.mapper"/>
    </bean>

</beans>

13、resources/mapper目录下添加TestMapper.xml映射文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.mapper.TestMapper">

        <parameterMap id="parameterMap" type="com.entity.Test"></parameterMap>
        <resultMap id="resultMap" type="com.entity.Test">
            <result property="id" column="id"/>
            <result property="userName" column="USER_NAME"/>
            <result property="gender" column="GENDER"/>
            <result property="email" column="EMAIL"/>
            <result property="age" column="AGE"/>
            <result property="createDate" column="CREATE_DATE"/>
            <result property="updateDate" column="UPDATE_DATE"/>
        </resultMap>

    <sql id="columnSql">
        <trim suffixOverrides=",">
            a.id as id,
            a.USER_NAME as USER_NAME,
            a.GENDER as GENDER,
            a.EMAIL as EMAIL,
            a.AGE as AGE,
            a.CREATE_DATE as CREATE_DATE,
            a.UPDATE_DATE as UPDATE_DATE
        </trim>
    </sql>
    <select id="selectOne" resultMap="resultMap">
        SELECT
        <include refid="columnSql"></include>
        FROM test_table a
        WHERE rownum = 1
    </select>
    <insert id="insert">
          insert into test_table (
            id,
            USER_NAME,
            GENDER,
            EMAIL,
            AGE,
            CREATE_DATE,
            UPDATE_DATE
        ) values(
            #{id},
            #{userName,jdbcType=VARCHAR},
            #{gender,jdbcType=VARCHAR},
            #{email,jdbcType=VARCHAR},
            #{age,jdbcType=VARCHAR},
            #{createDate,jdbcType=DATE},
            #{updateDate,jdbcType=DATE}
        )
    </insert>
</mapper>

13、main\java\com\entity目录下添加Test.java文件

package com.entity;


import java.util.Date;

/**
 * @Description 测试实体类
 * @Author wanglz
 * @Date 2018/06/02 14:05
 **/
public class Test {
    private String id;
    private String userName;
    private String gender;
    private String email;
    private Integer age;
    private Date createDate;
    private Date updateDate;

    public Test() {
    }

    public Test(String id, String userName, String gender, String email, Integer age, Date createDate, Date updateDate) {
        this.id = id;
        this.userName = userName;
        this.gender = gender;
        this.email = email;
        this.age = age;
        this.createDate = createDate;
        this.updateDate = updateDate;
    }
    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public Date getCreateDate() {
        return createDate;
    }

    public void setCreateDate(Date createDate) {
        this.createDate = createDate;
    }

    public Date getUpdateDate() {
        return updateDate;
    }

    public void setUpdateDate(Date updateDate) {
        this.updateDate = updateDate;
    }
}

14、main\java\com\mapper目录下添加TestMapper.java接口

package com.mapper;
import entity.Test;
import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;
/**
 * @Description 映射接口
 * @Author wanglz
 * @Date 2018/06/02 14:06
 **/
@Mapper
@Repository
public interface TestMapper {
    Test selectOne();
    void insert(Test test);
}

15、main\java\com\service目录下添加TestService.java文件

package com.service;
import entity.Test;
import mapper.TestMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * @Description service层
 * @Author wanglz
 * @Date 2018/06/02 14:06
 **/
@Service
public class TestService {
    @Autowired
    private TestMapper testMapper;

    public void insert(Test test){
        testMapper.insert(test);
    }

    public Test selectOne() {
        return testMapper.selectOne();
    }
}

16、main\java\com\controller目录下添加TestController.java文件

package com.controller;
import entity.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import service.TestService;
import java.util.Date;
import java.util.UUID;

/**
 * @Description 控制层
 * @Author wanglz
 * @Date 2018/06/02 14:16
 **/
@Controller
@RequestMapping("/test")
public class TestController {
    @Autowired
    private TestService testService;

    @RequestMapping("/index")
    public String index(Model model) {
        Test test = testService.selectOne();
        model.addAttribute("id", test.getId());
        return "index";
    }

    @RequestMapping("/insert")
    @ResponseBody
    public String insert() {
        testService.insert(new Test(UUID.randomUUID().toString(), "张三", "男", "123424@qq.com", 32, new Date(), new Date()));
        return "success";
    }
}
下一篇

mysql-8.0.28 centos 安装

上一篇

Angular集成dhtmlx-gantt甘特图
